Sinotruck Howo Dump Truck 6x4 336 371 380 10 Wheeler 40Ton Tipper Truck with Low Price
Product Description:
---Dump truck is our Star product.We are very familiar with it and experienced in exporting it.
We pay great attention to the truck quality and performance.
---Just tell us your shipping needs, we will customize dump trucks with different loading weights and volumes and colour.
A good truck will help you work well.

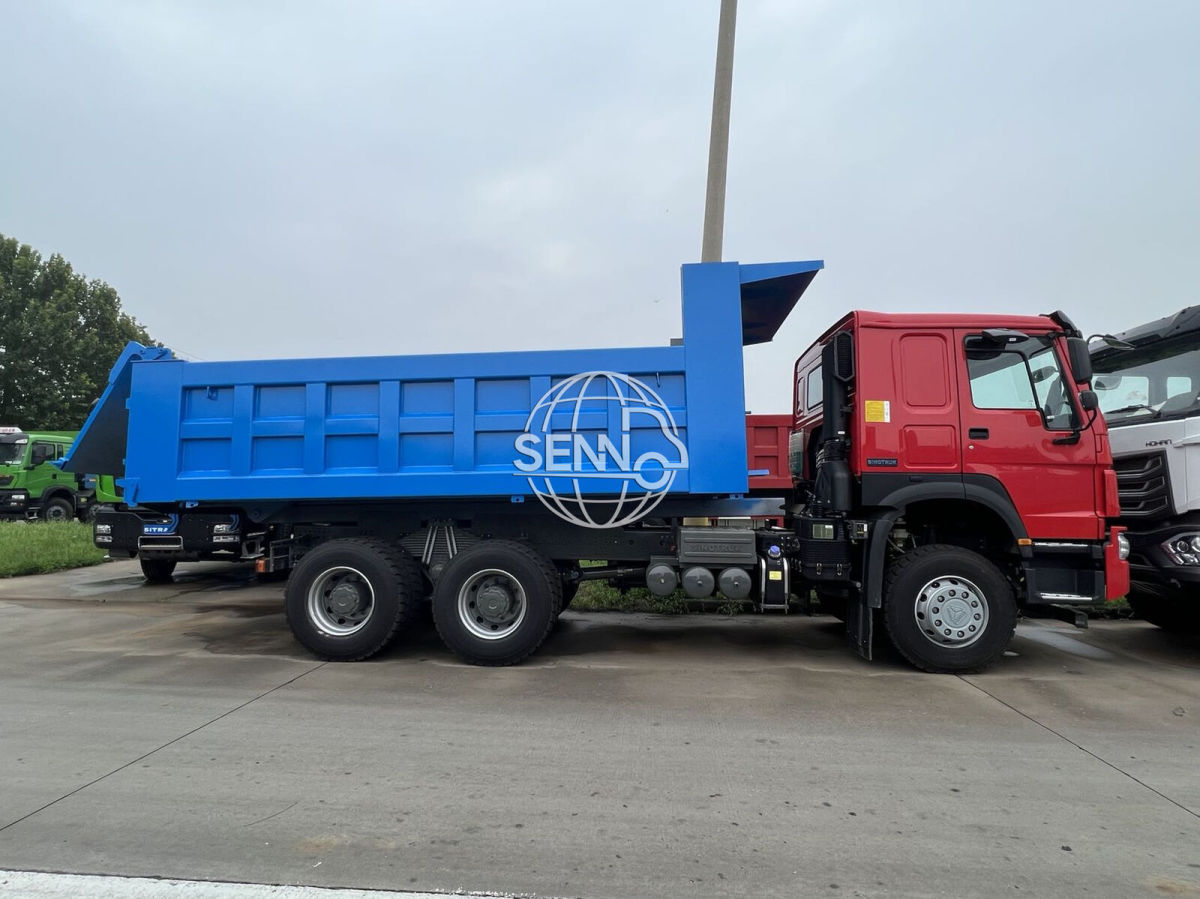

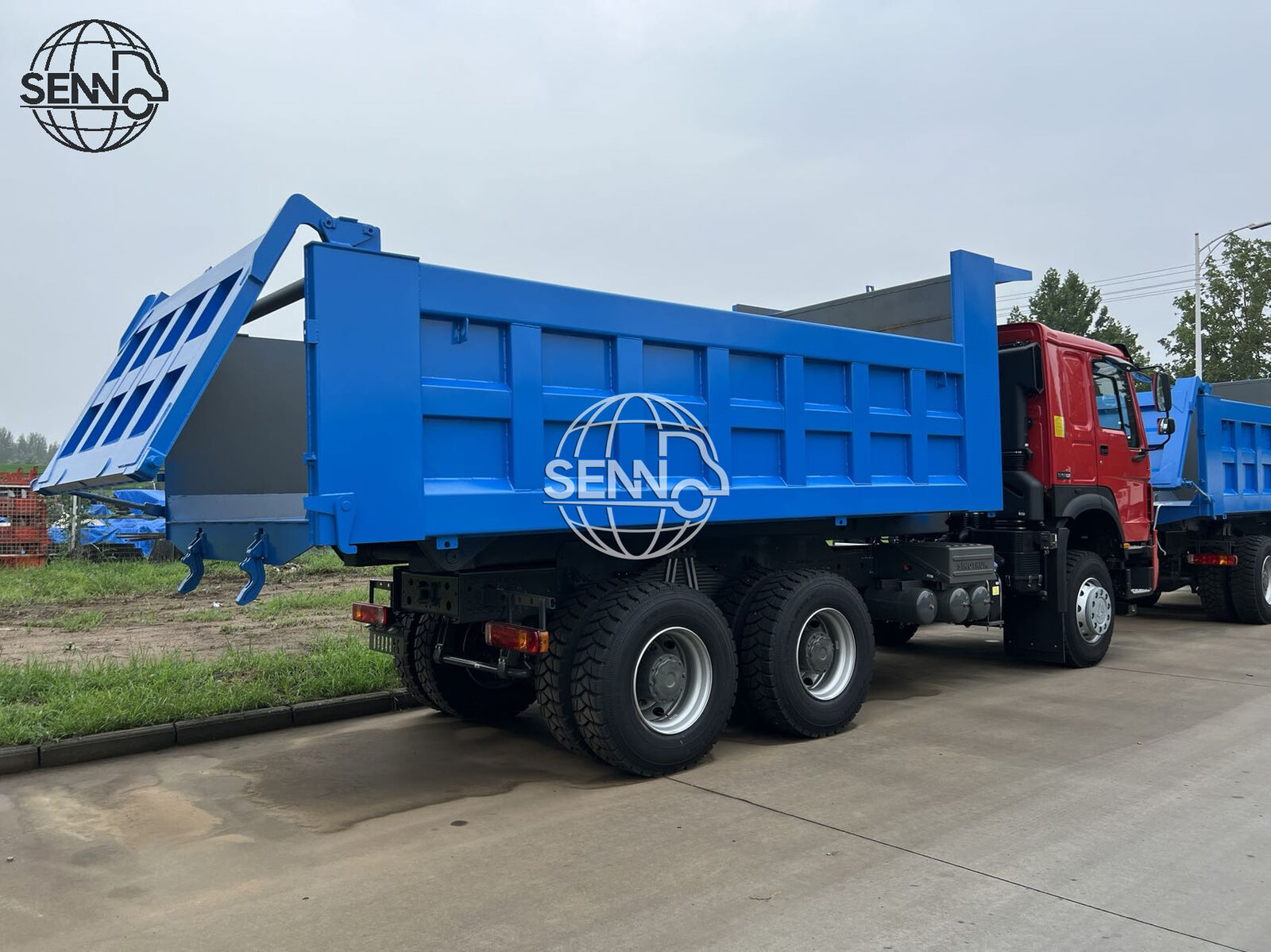

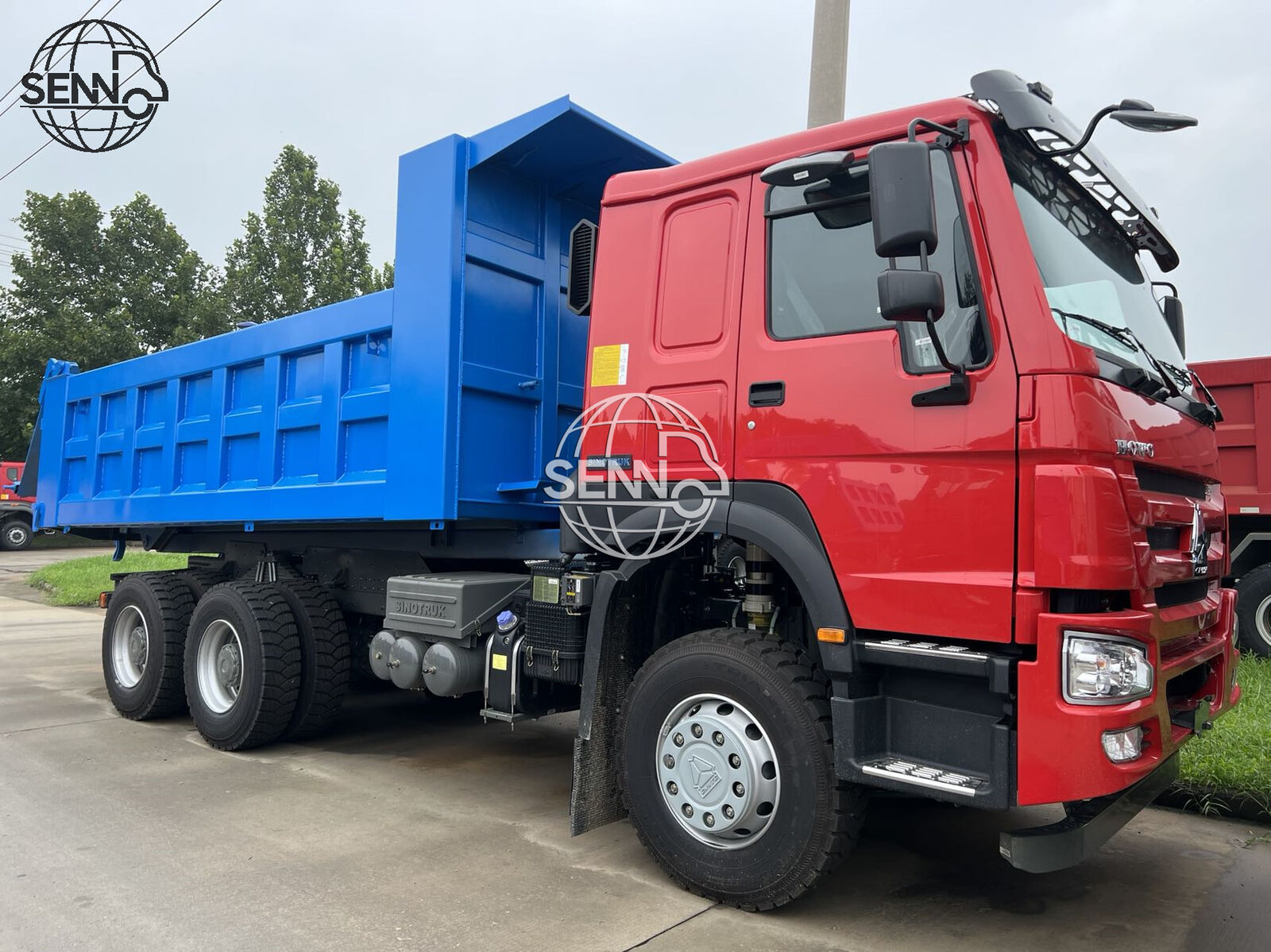

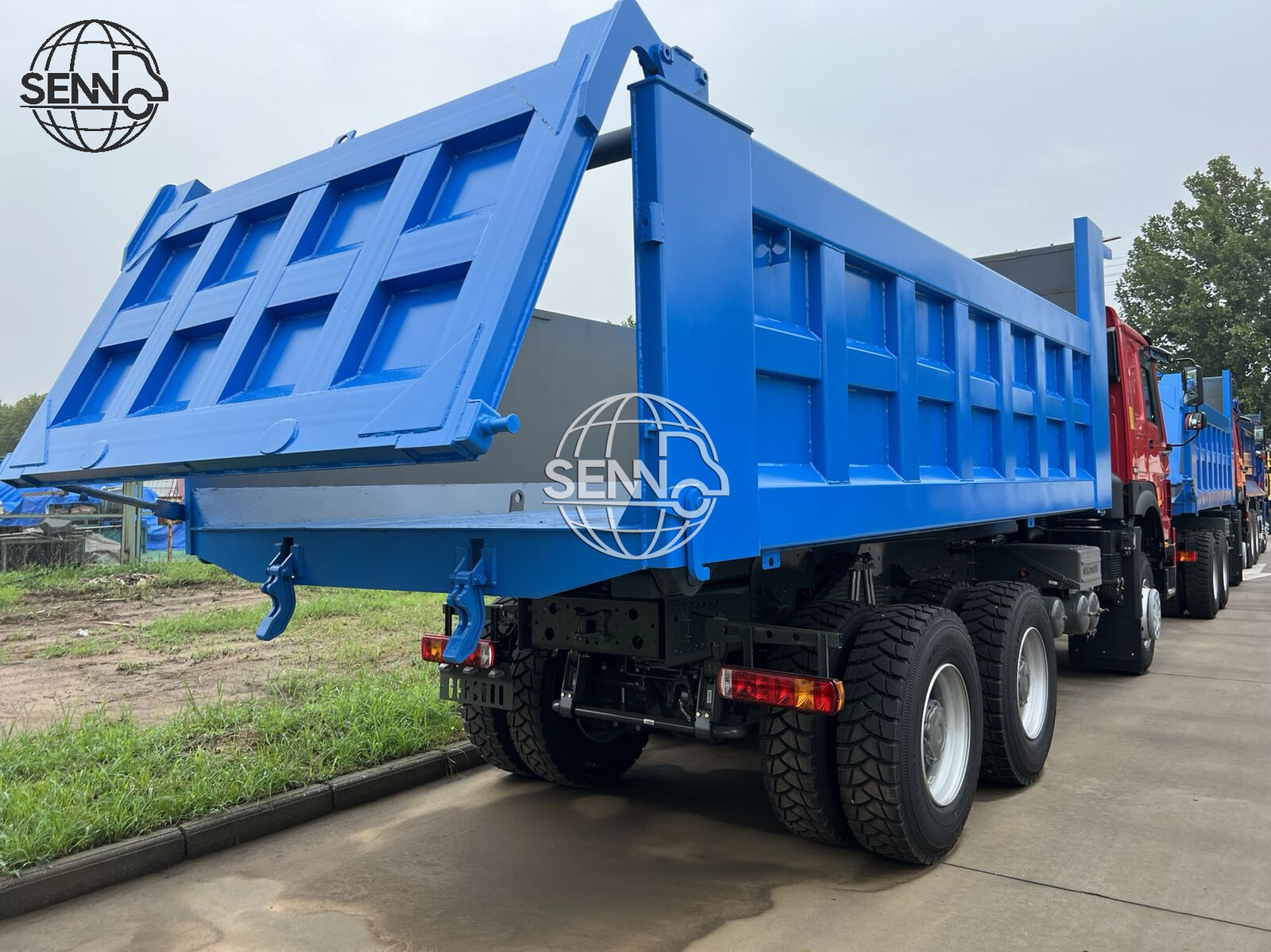

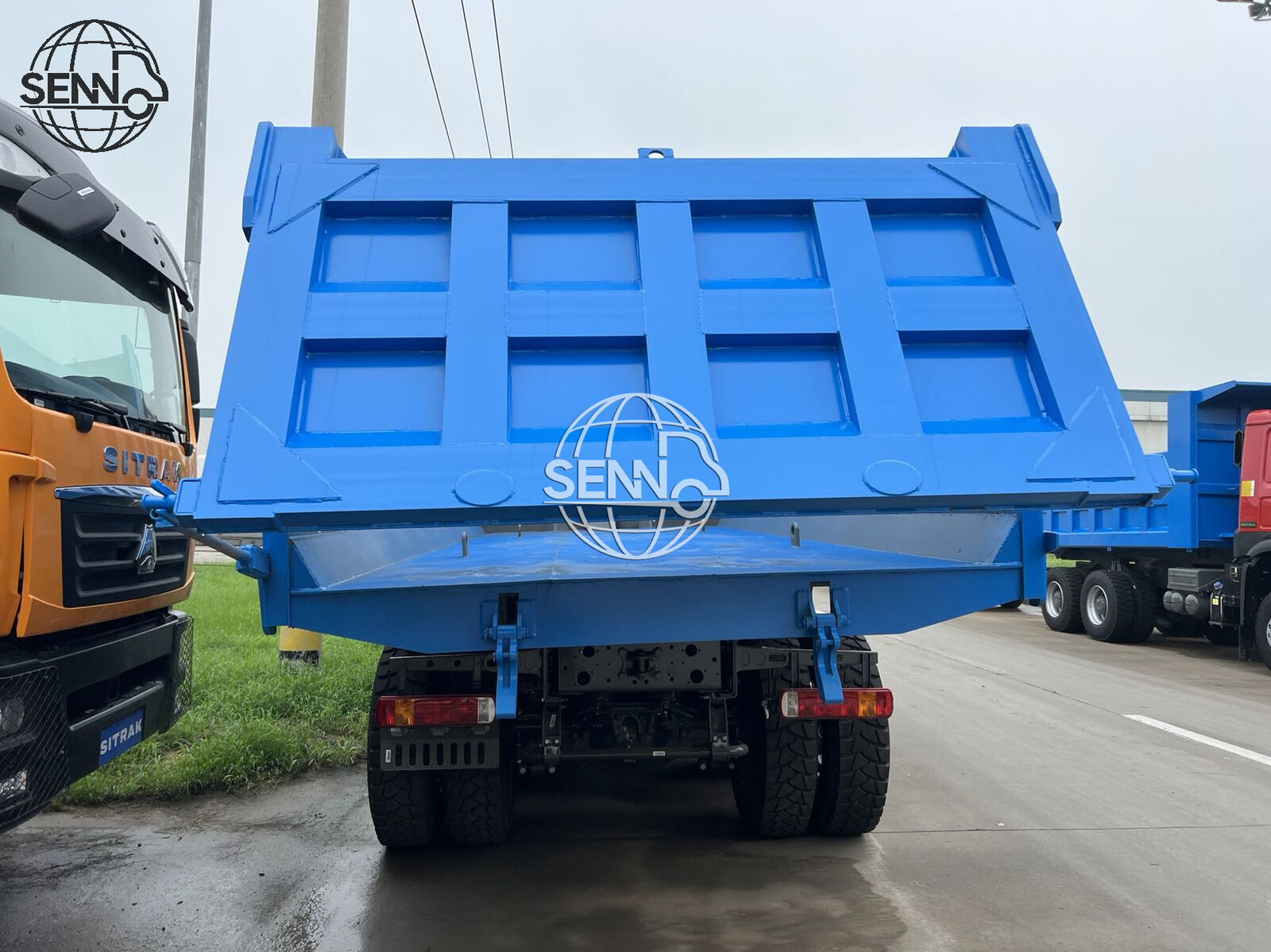

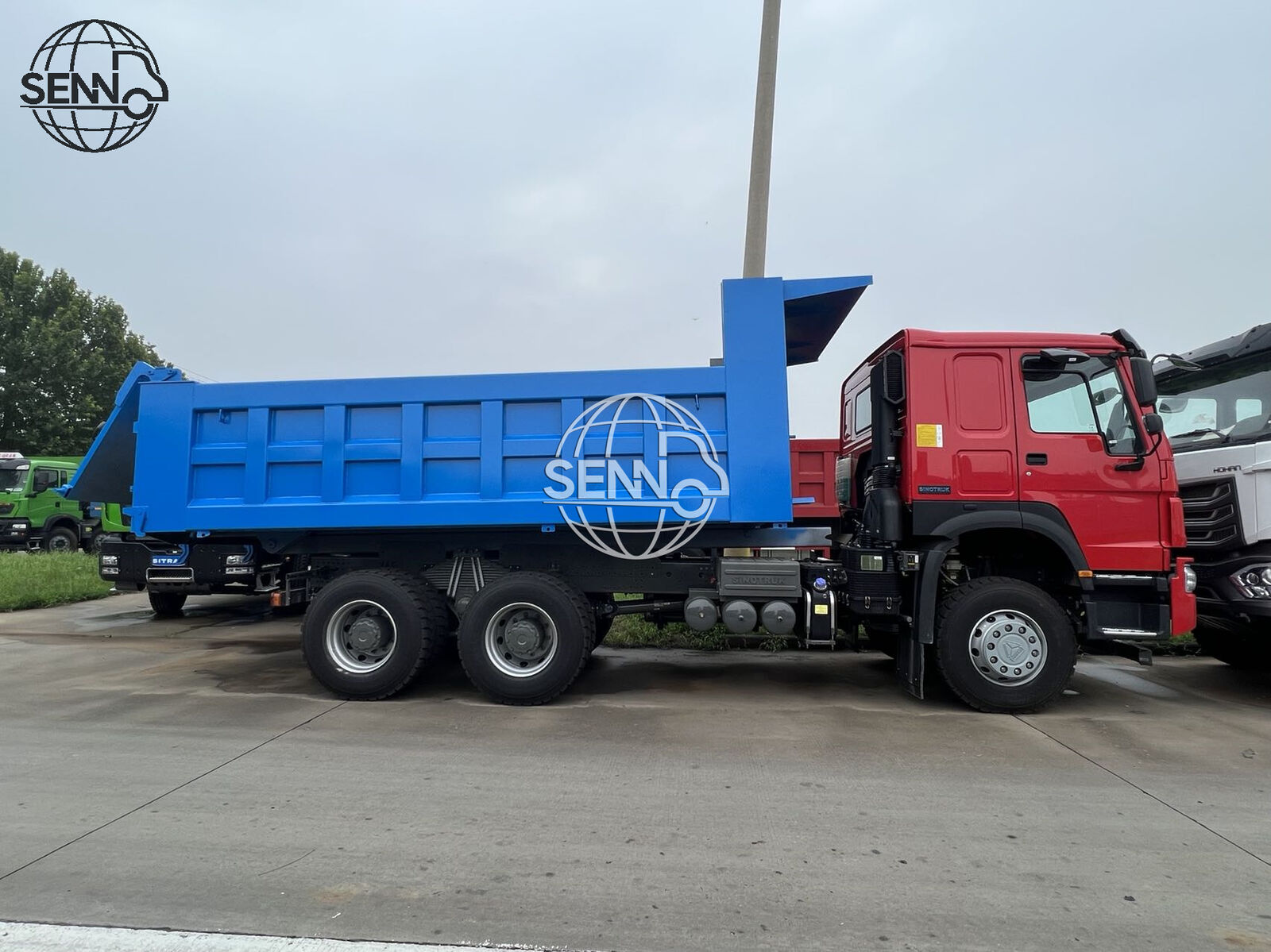

Photos:
Specifications:
HOWO DUMP TRUCK 6×4 SPECIFICATIONS |
| Model | ZZ3257N3841W |
| Engine | Engine model: WD615.47, 371HP,Euro 2 emission standard , 4 stroke injection diesel engine, 6 cylinder in-line with water cooling, turbo-charging & inter cooling,common rail Maximum output: 380PS (276kW) at 2000 rpmMaximum torque: 1560Nm at 1200-1500rpmBore: 126mm Stroke: 130mmDisplacement: 9.726L |
| Clutch | SINOTRUK’s 430C diaphragm spring clutch, hydraulically operating with air assistance |
| Transmission | Transmission, model HW19710, 10 forward and 2 reverseRatio: 4.42 4.8 5.73 |
| Front Axle | New HF9 series, with drum brake system |
| Rear Axle | HC16 pressed axle housing, single reduction and differential locks between axles; with drum brake system. |
| Steering | ZF8118, hydraulic steering with power assistanceRatio: 22.2-26.2:1 |
| Wheels&Tyres | Rims: 8.5-20,10 hole-steelTypes: 12.00R20 |
| Driver'sCab | Long cab, all steel forward control, 55°hydraulic tilting to the front, 2-arm windscreen wiper system with 3 speeds, adjustable co-driver’s seat, heating & ventilation system, with stereo radio/cassette recorder, sun visor, safety belt, air conditioner |
| Dimensions inmm | Wheel base (mm): 3800+1350 Front wheel track (mm): 2022/2041 Rear wheel track (mm):1830/1830 Overhang(front/rear) (mm):1500/1870 Approach angle(°):19 Departure angle(°):23 Overall Dimension (mm): 8545x2496x3450 |
| Weight in kg | Permissible loading capacity (kg):12600Dead weight (kg):1227 0Gross vehicle weight (kg):25000 Front axle loading capacity (kg):9000 Rear axle loading capacity (kg):2*16000 |
| Performance | Maximum driving speed(km/h):75(reference data) Maximum gradeability (%):36 Minimum ground clearance(mm):314 Minimum turning radius (m):15 Fuel consumption(L/100km):40(reference data) |

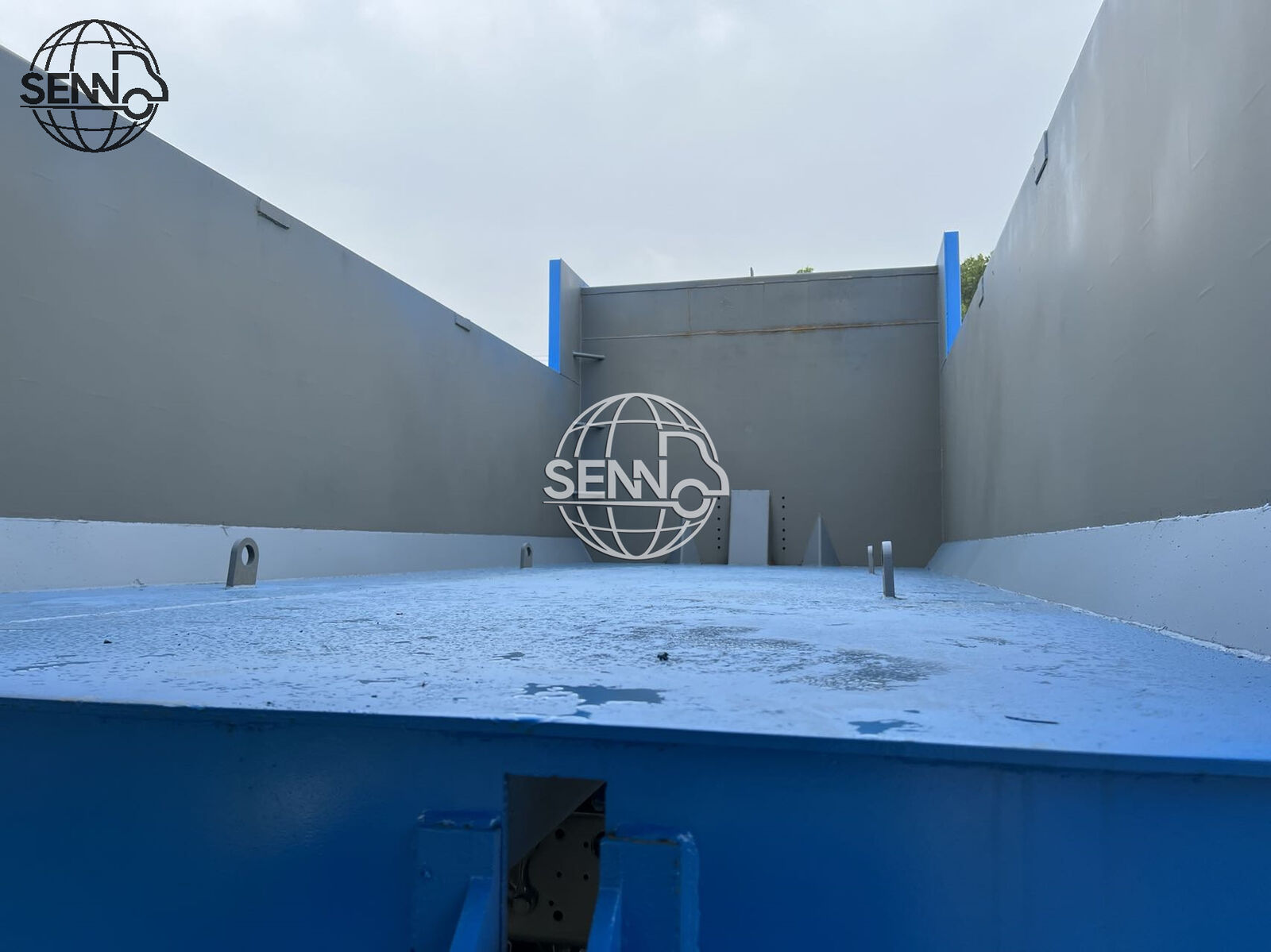

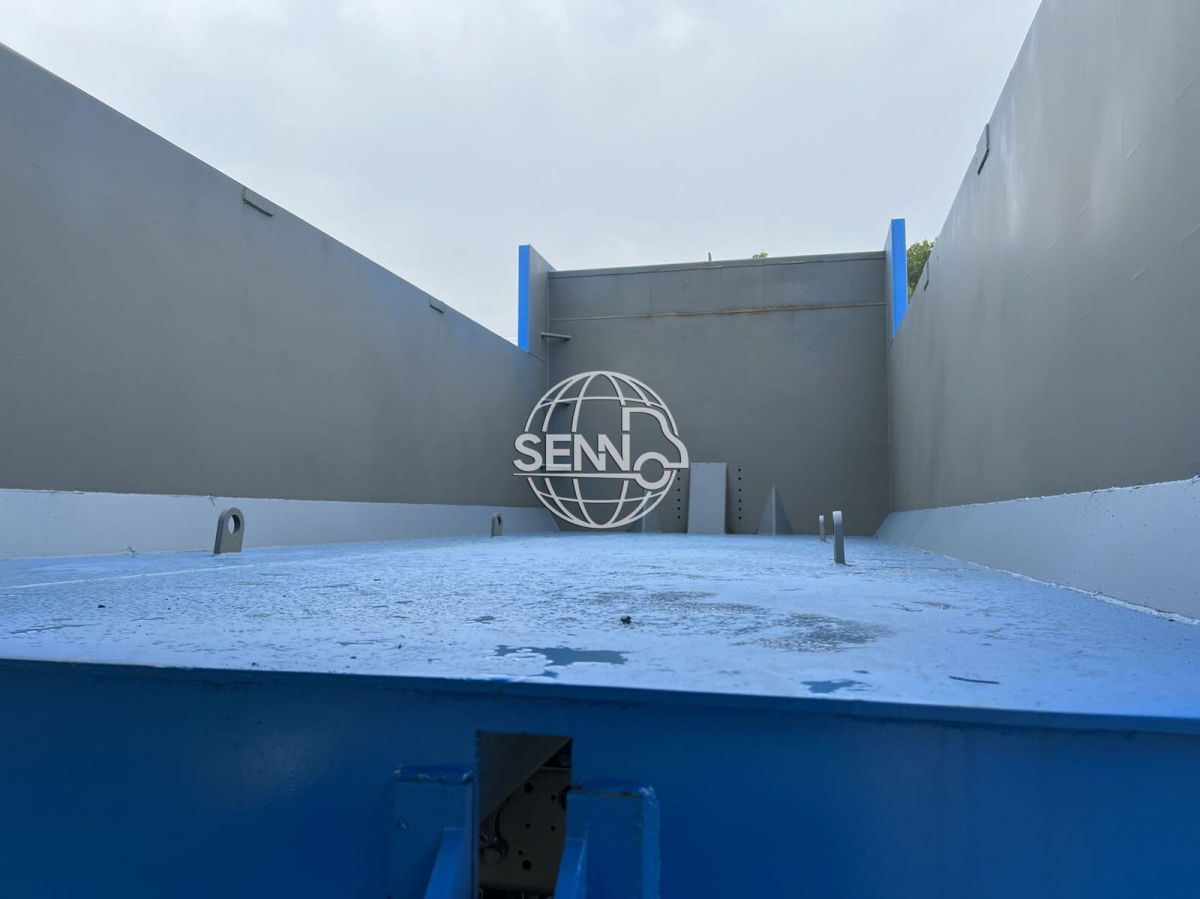

| Cargo body | Size:5600*2300*1500, bottom 8mm, side 6mm, middle lift |
| Color | Red and Blue, others are optional |
