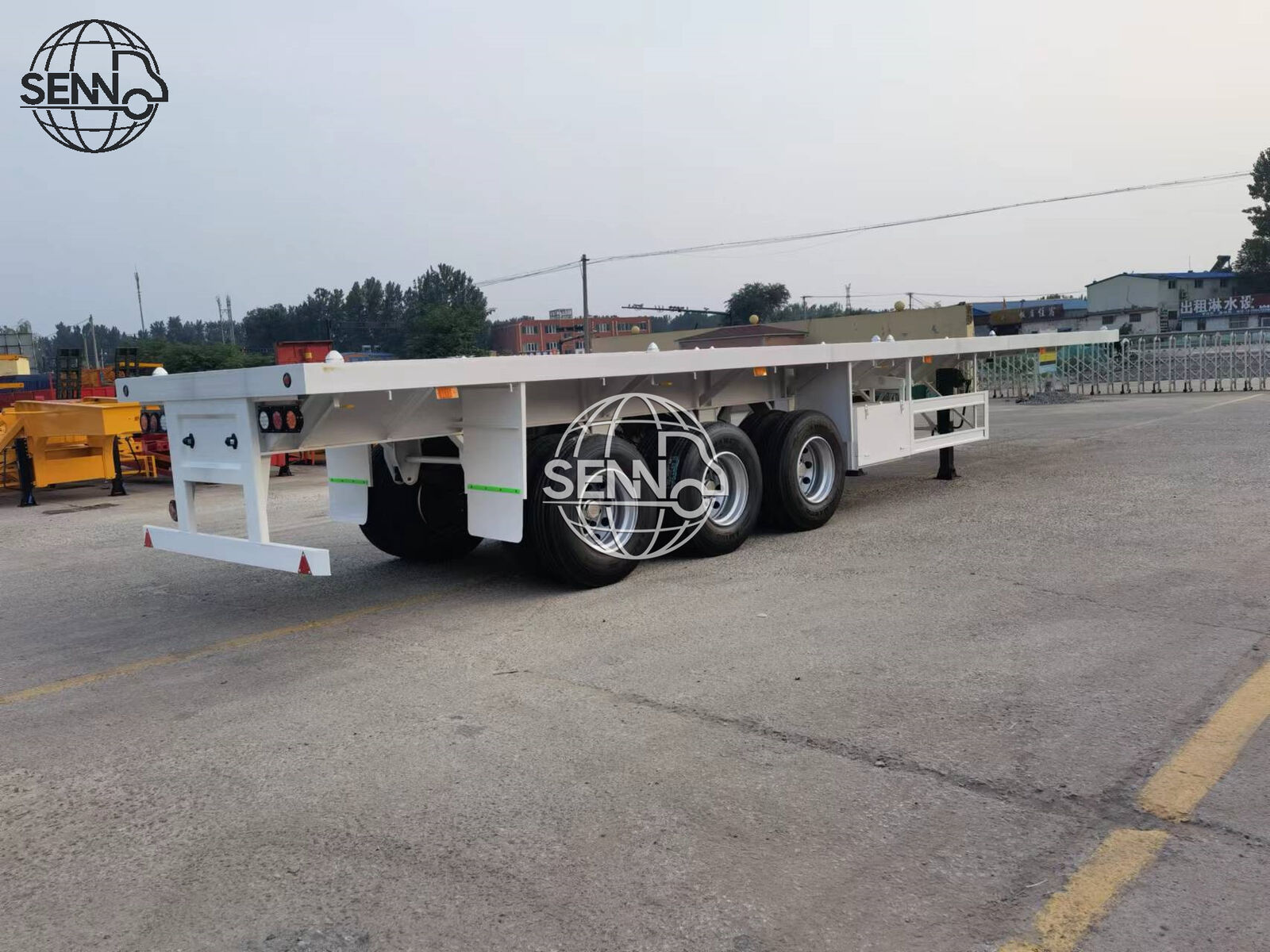

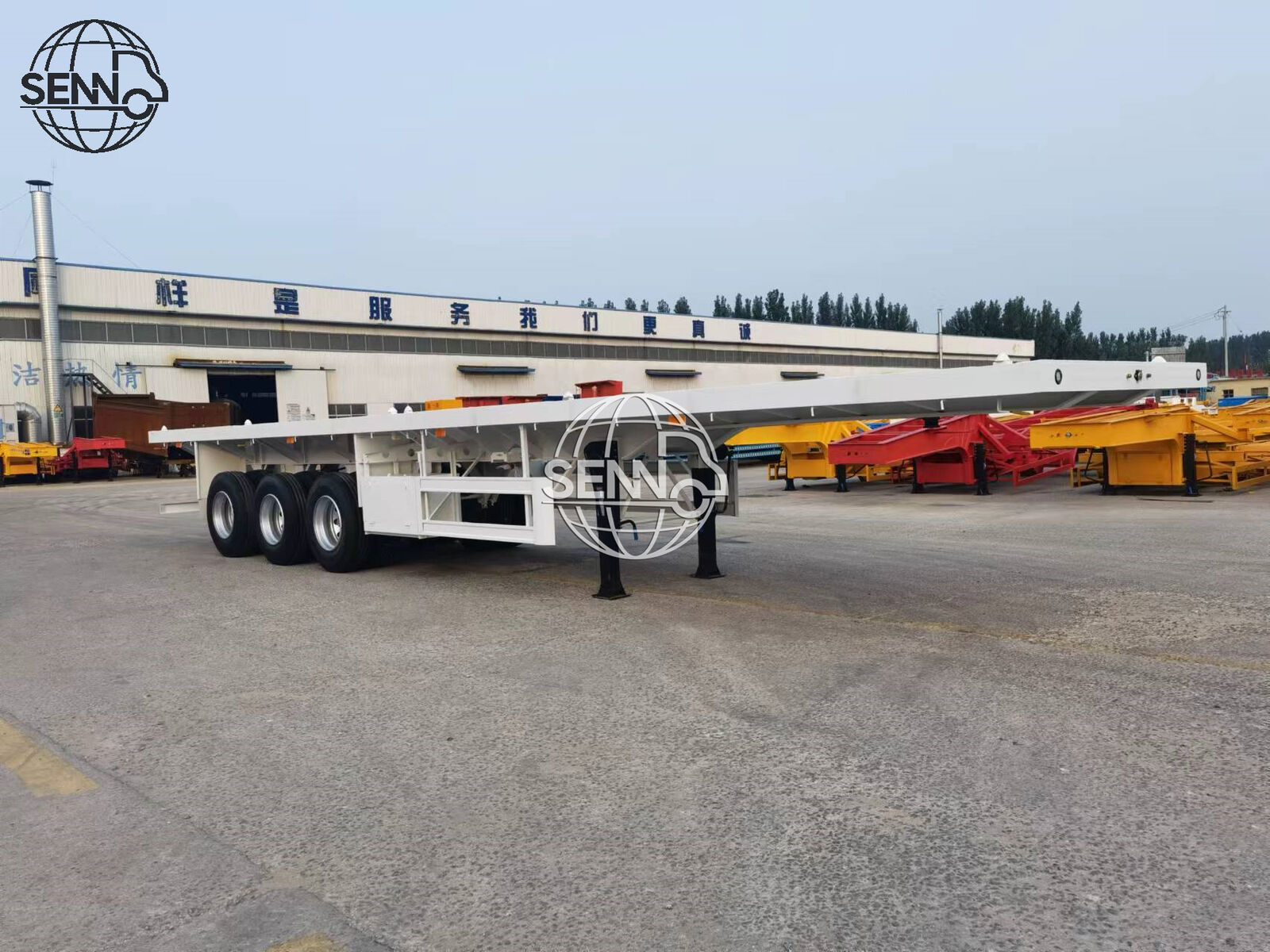

Senno Truck Trailer Flatbed Trailer 3 Axles 50tons 13M Container Carrier
The model  and video on this page are shows 50ton container trailer only, but there are range from 40ton to 120ton trailers are available. Besides, colors and capacity are also based on your requests.


Name: Container Trailer

Brand: CIMC

From: SENNO

WhatsApp
Contact

Senno Truck Trailer Flatbed Trailer 3 Axles 50tons 13M Container Carrier


Product Description：


Container trailer is available with 20ft,40ft,45ft, 48ft and 53ft container . Extendable Chassis and Multipurpose Container Trailer can be designed as customer requirement .

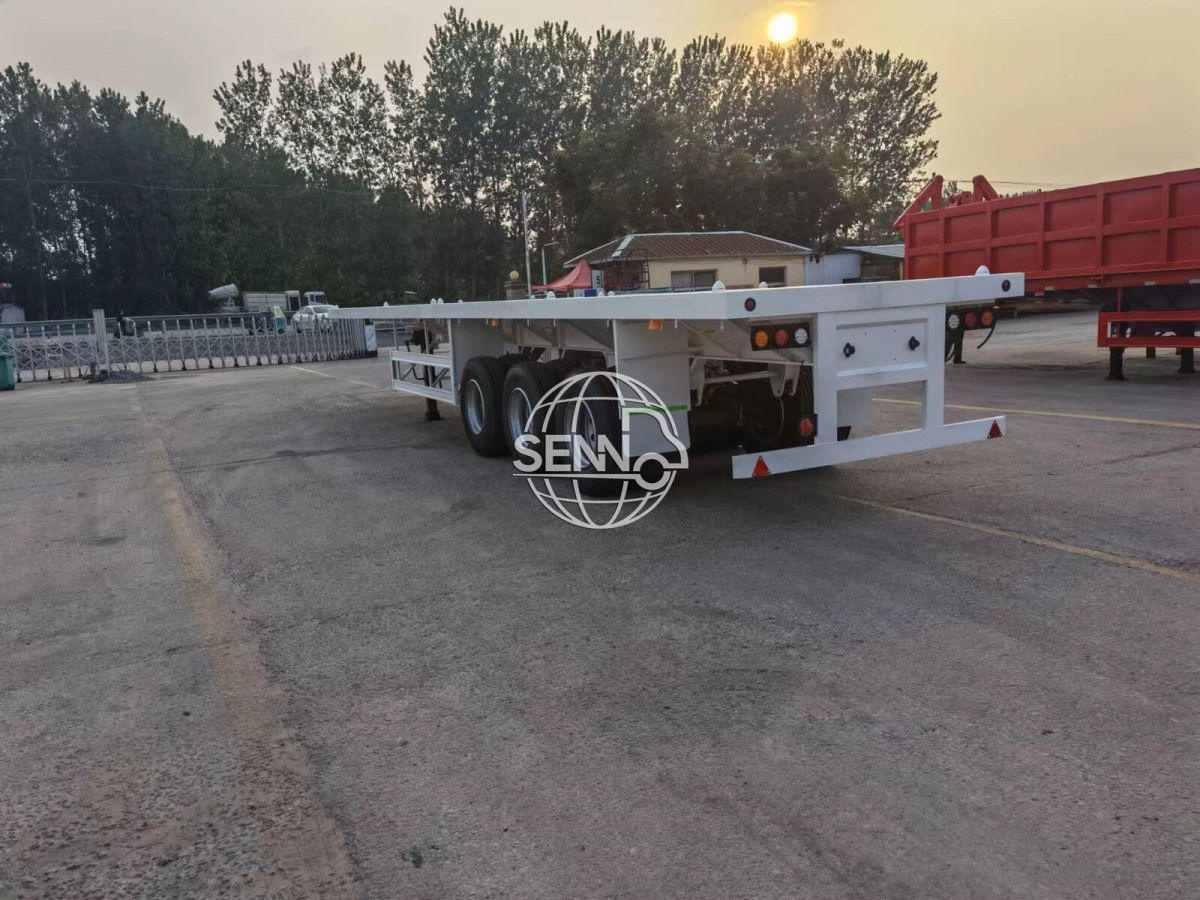

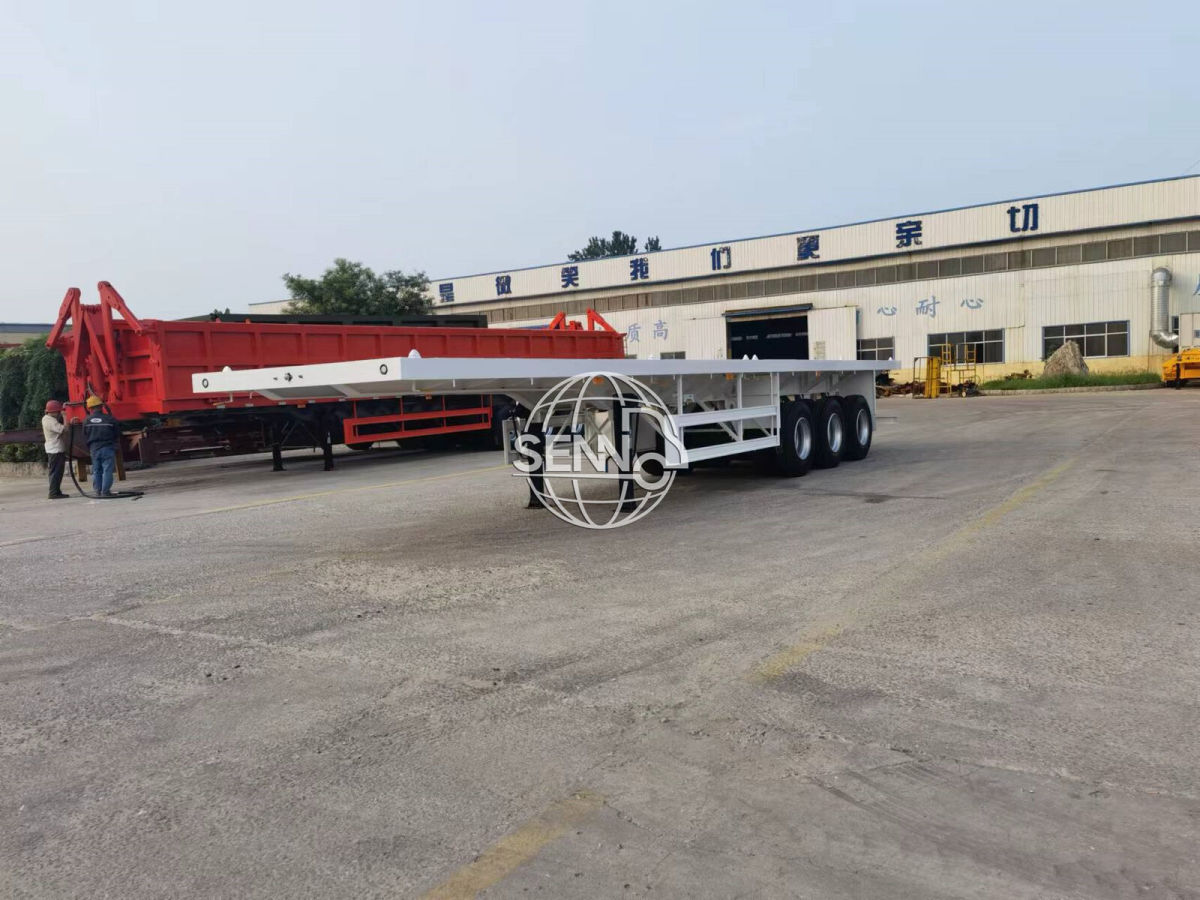

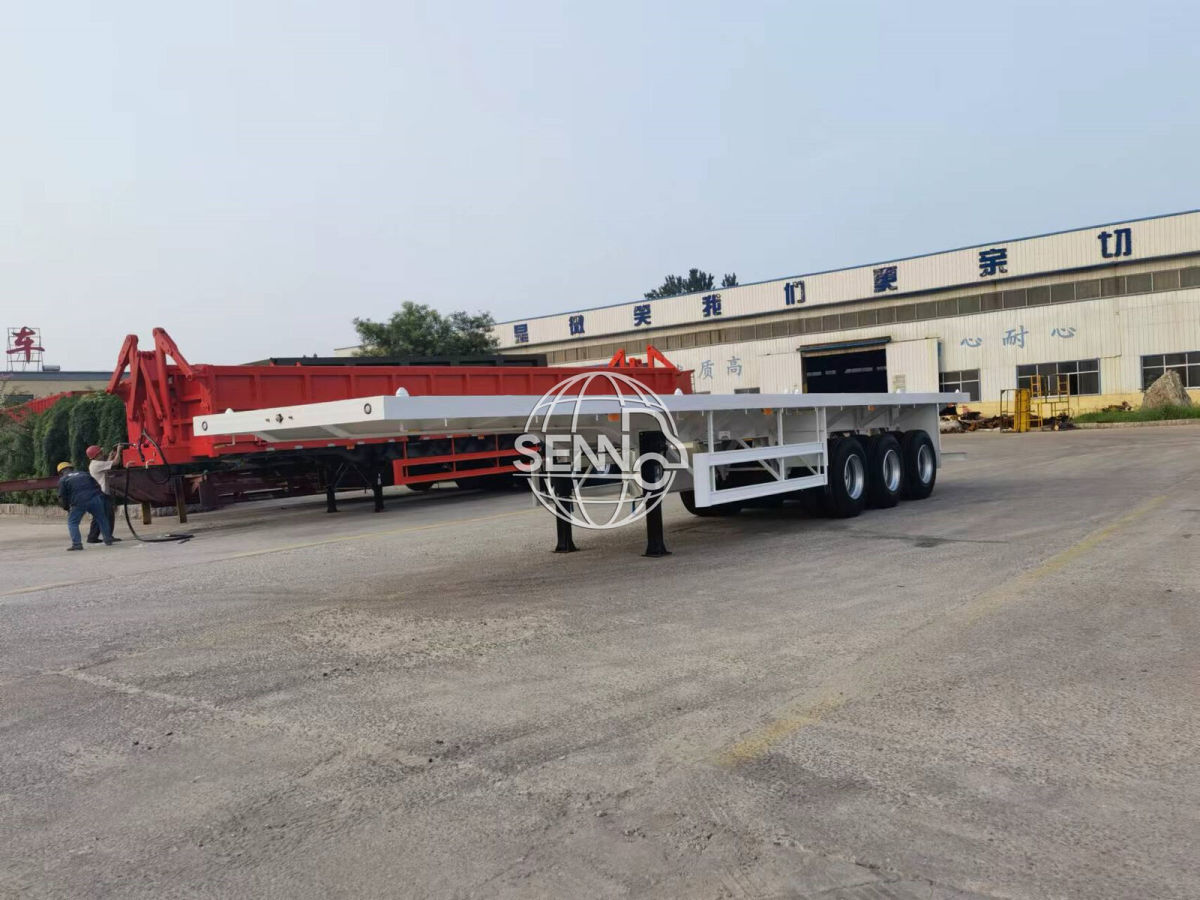

Photos：

详情

详情

详情


Specification:


40FEET FLATBED SEMI TRAILER
Tare weight 6900kgPayload 50000 kg
Overall length 12500mmOverall width 2500mmOverall height      1500mm
SPECIFICATION
ChassisHeavy duty and extra durability designed I beam;opting for high tensile steel Q345,welded by automatic submerged-Aac processes.Top flange 14mm,width140mm;Middle Flange 8mm;bottom flange16mm,width 140mm side beam16#steel channel
AxleNumber        3Brand  FUWA Capacity 13T
Suspension Mechanical suspension american type
Leaf spring Leaf spring 10pcs*13mm 6 SET
Floor 3mm .checkered plate
Tire 12R22.5 double star  12pcs
Wheel rim 9.0  12 pcs
Kingpin 2’’  king pin
Landing gear SAF-Holland brand two-speed,manual operating ,heavy duty landing gear 28T
Twist lock 12 no.of ISO twist lock for 1x20ft,2x20ft,1x40ft container
Vehicular applications Container (20ft.40ft..) transport
DrawingIncluding
Braking system WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks .24V
Paiting Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint （Polyurethane paint）
Accessories One standard tool box
