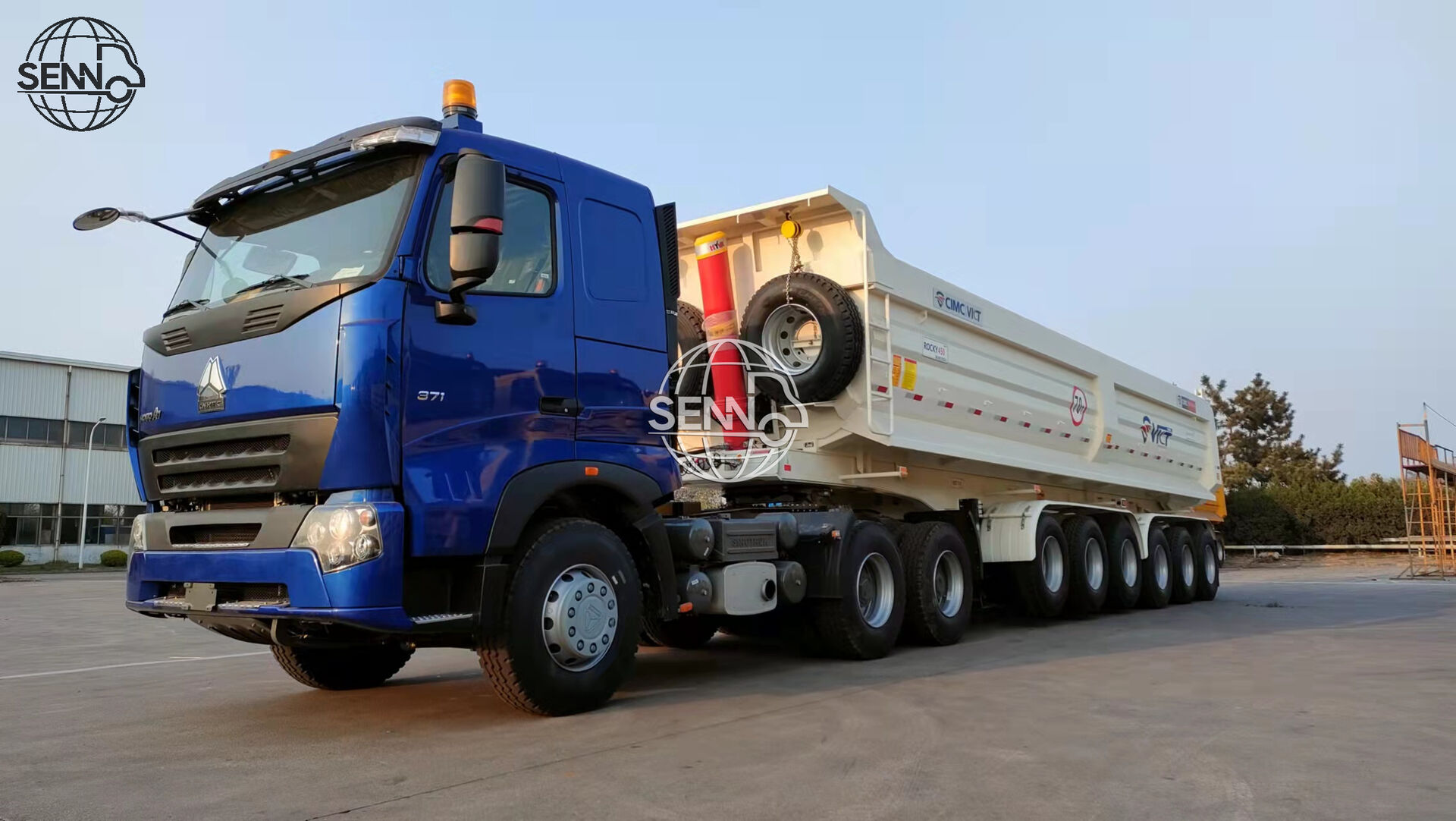

CIMC Brand 40CBM U-Shape Dump Tipping Trailer with Six Axles
The model  and video on this page are shows 40 cubic dump trailer only, but there are range from 35cubic to 70cubic trailers are available. Besides, colors and capacity are also based on your requests.


Name: Dump Trailer

Brand: CIMC

From: SENNO

WhatsApp
Contact

CIMC Brand 40CBM U-Shape Dump Tipping Trailer with Six Axles


Product Description：


Dump trailer is built for transport of loose materials such as coal, mud, sand, gravel, iron, building materials and other scattering bulk goods, Our Trailer can provide you different tipper designs per operation needs.


Photos：

主图


详情

详情

Specifications:

Type40CBM U-Shape Dump Tipping Trailer with Six Axles
Model ZJV9400UZX2
ParameterInner Dimension(mm)length×width×height:11,100*2,500*1,530
Capacity(m³)40m³
Payload （kg）70,000
FabricMain Beam(mm)Submerged arc welding
ConfigurationTireFront 3 axle Type: 13R22.5, equip 6 pcs per chassis;Rear 3axles 13R22.5, Triangle brand, equip 6 pcs per chassis, (including 1 pc of spare tyre).
RimFront  3axle Type:9.0 -22.5, equip 6pcs per chassis; Rear 3 axles 9.0-22.5, equip 17 pcs per chassis.
Axle Fuwa 13T，3 sets；Fuwa 16T，3 sets ,without ABS
SuspensionFirst 3pcs axle  MANDEEP German type air suspension lifting，Rear 4-axle mechanical suspension前3轴MANDEEP
Hydraulic SystemHyva full set of hydraulic system
Landing GearGODSTONE 19”, Lifting capacity 30T and static load 80T
Kingpin3.5”JOST ,exchangeable  JOST，90#，
Brake SystemDual air brake system,30/30 type, WABCO brake valve.
ABSNon
Electrical System24V, LED lamp24V，LED
Paintprimer + top coat, polyurethane paint
Spare Tire Carrier equip 2 set per chassis
Tool Box1 set
ColorBy customer’s requirement.
Othersl Main beam: “CIMC” logo  CIMC logol Nameplate: English model  l Mud guard: Integral Fender
